I’d like to renew my CNC for PCB, I select a project called Cyclone PCB Factory to start.

But I think there are some issue on the mechanic, and I need more features to use It with simplicity, so I start to fix, one of the most important features is T-track to hold PCB (and if needed simplify the double side milling).

I use standard Cyclone base but I put over T-track.

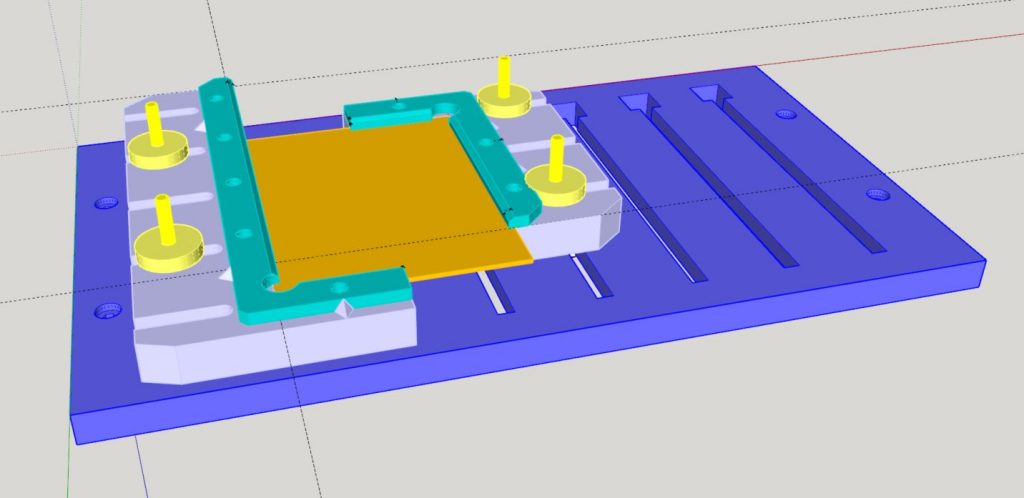

Cyclone PCB Factory TTrack schema

3D Model

WP 3D Thingviewer Lite need Javascript to work.
Please activate and reload the page.

Printed parts

I create 2 version of the base one as unique piece (but with lengt of 215cm) and one divided in 2 piece for smaller 3D printer bed.

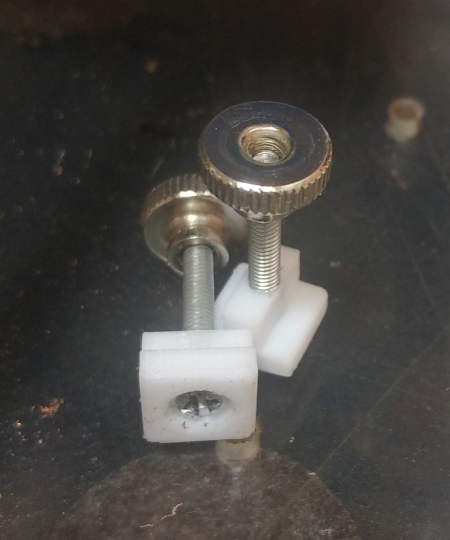

Slider M3 for T-track
Slider M3 for T-track

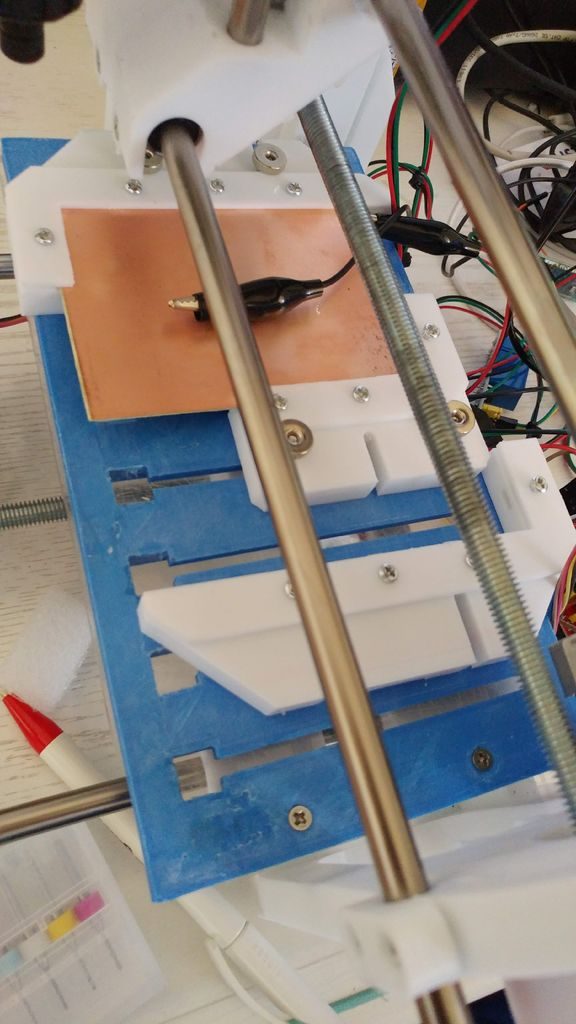

T-track at work

T-track

Material

I use M3 screw for all and I had 4 Adjusting Nut For Hot Bed.

Adjusting Nut

You can buy here

And in addition with the slider you obtain this T-track screw to fix holder.

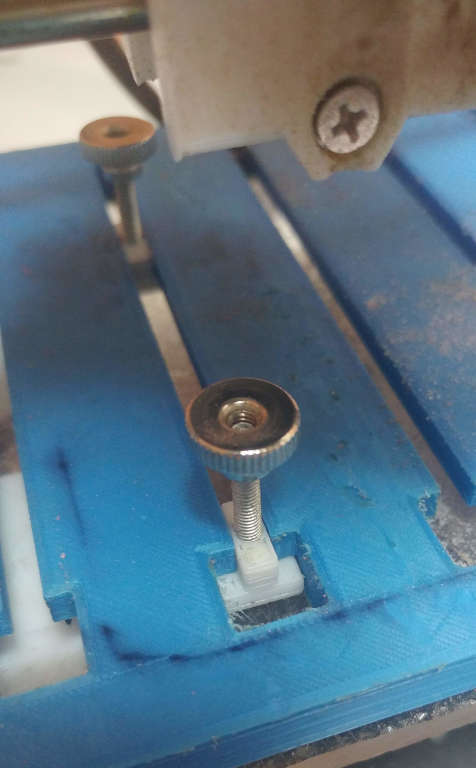

TTrack M3 screw slider

The slider enter inside the track and you can move It up and down.

Download

  • 25
  •
  •
  • 1
  •
  •

You may also like...

6 Responses

  1. Manuel Rodriguez says:

    Hi, Slider for M3 screw is too big. What scale should be used? Can you upload the file with the correct size?

    • Hi, I use mm ad scale 1:1.. Without do nothing. I check the file and tell you.

      • Manuel Rodriguez says:

        Hi Renzo, have you check it?

        • It’s true, the scale of Slider for 3mm screw have wrong scale (mm instead inch), I think now It’s fixed.
          Tell me If It’s OK.
          Thanks Bye

          • Manuel Rodriguez says:

            Hi Renzo. I can’t download it, I get this on the screen:
            solid TtrackSliderAll
            facet normal -1.0 0.0 0.0
            outer loop
            vertex 2.8345913015056268 12.399773902746842 2.8000000000000025
            vertex 2.8345913015056268 12.399773902746842 0.5000000000000028
            vertex 2.8345913015056268 2.7997739027468365 2.8000000000000025
            endloop
            endfacet
            facet normal -1.0 0.0 0.0
            outer loop
            vertex 2.8345913015056268 2.7997739027468365 0.5000000000000028
            vertex 2.8345913015056268 2.7997739027468365 2.8000000000000025
            vertex 2.8345913015056268 12.399773902746842 0.5000000000000028
            endloop
            endfacet
            facet normal 0.0 1.0 0.0

          • Yes It’s probably that your borwser check that It’s a txt format (stl not compressed is in txt format), you must do
            [right mouse button] –> and

            Bye Renzo
