UV Torch holder

Spread the love

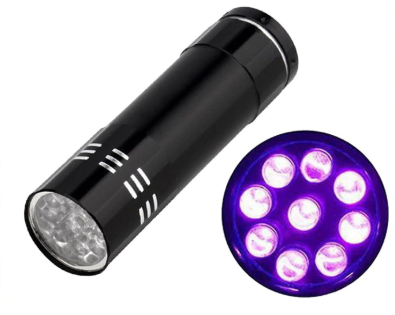

When you are going to do a solder mask probably you need a long exposure time, if you buy an economical torch like this.

You can buy here

So I design a torch holder.


WP 3D Thingviewer Lite need Javascript to work.
Please activate and reload the page.

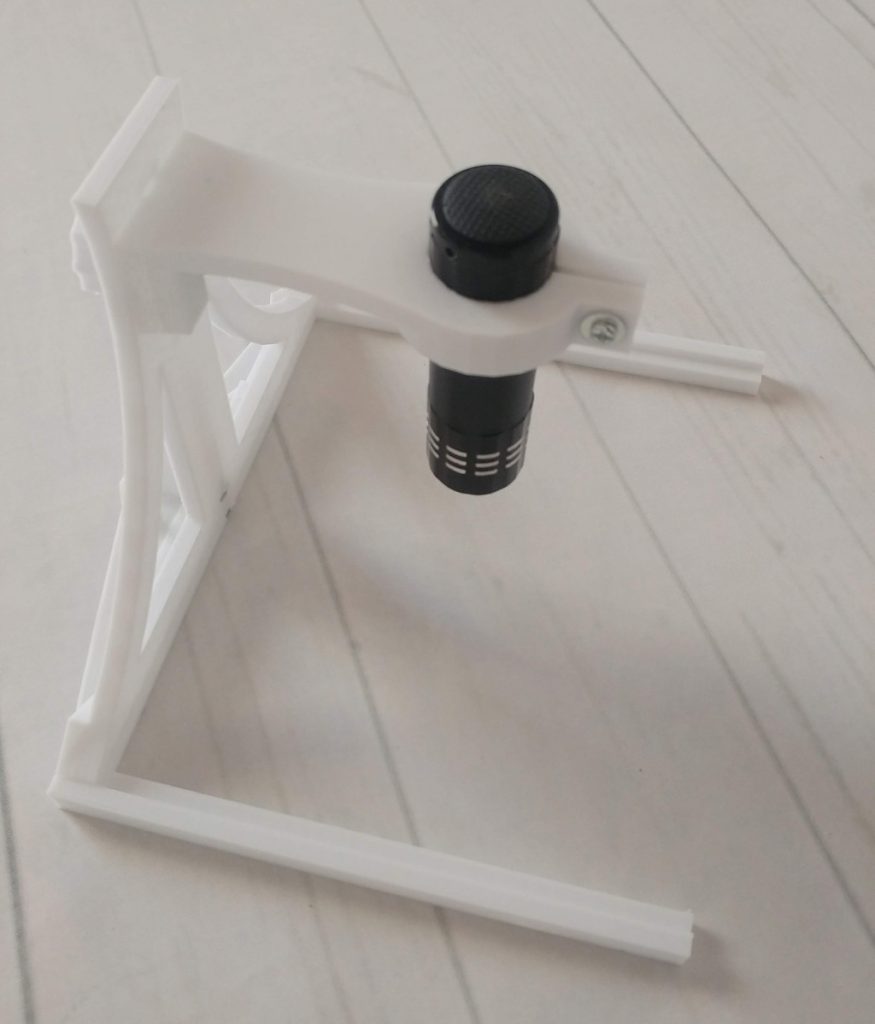

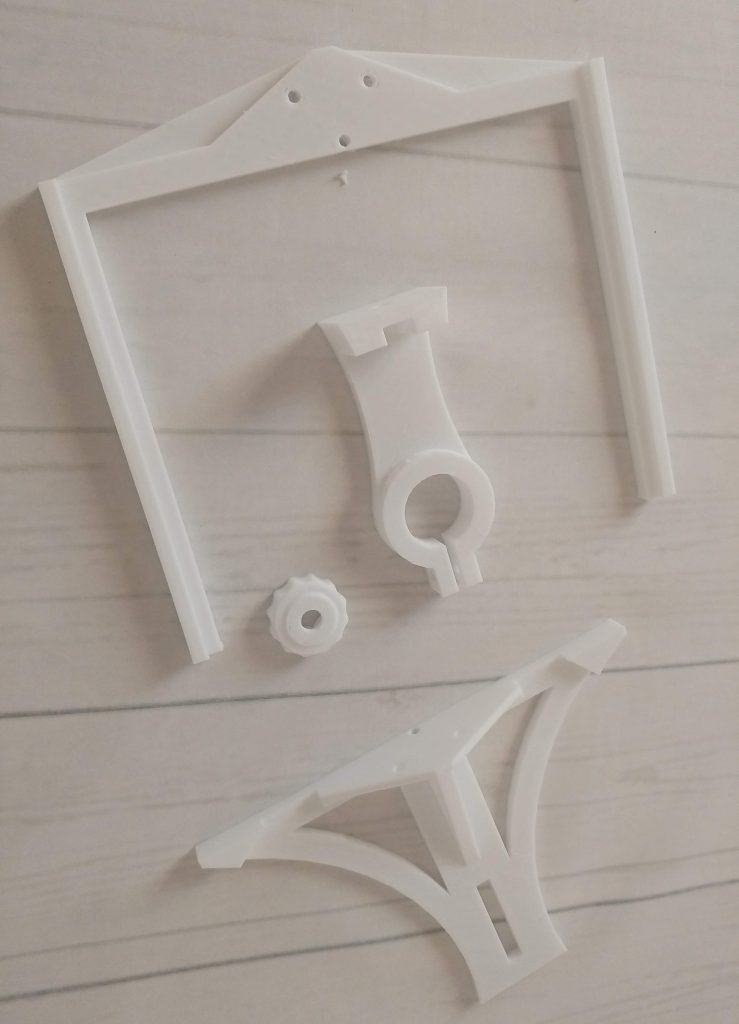

All printed parts.

I add a knob to lower and raise the torch.

As you can see It’s very simple but usefully.

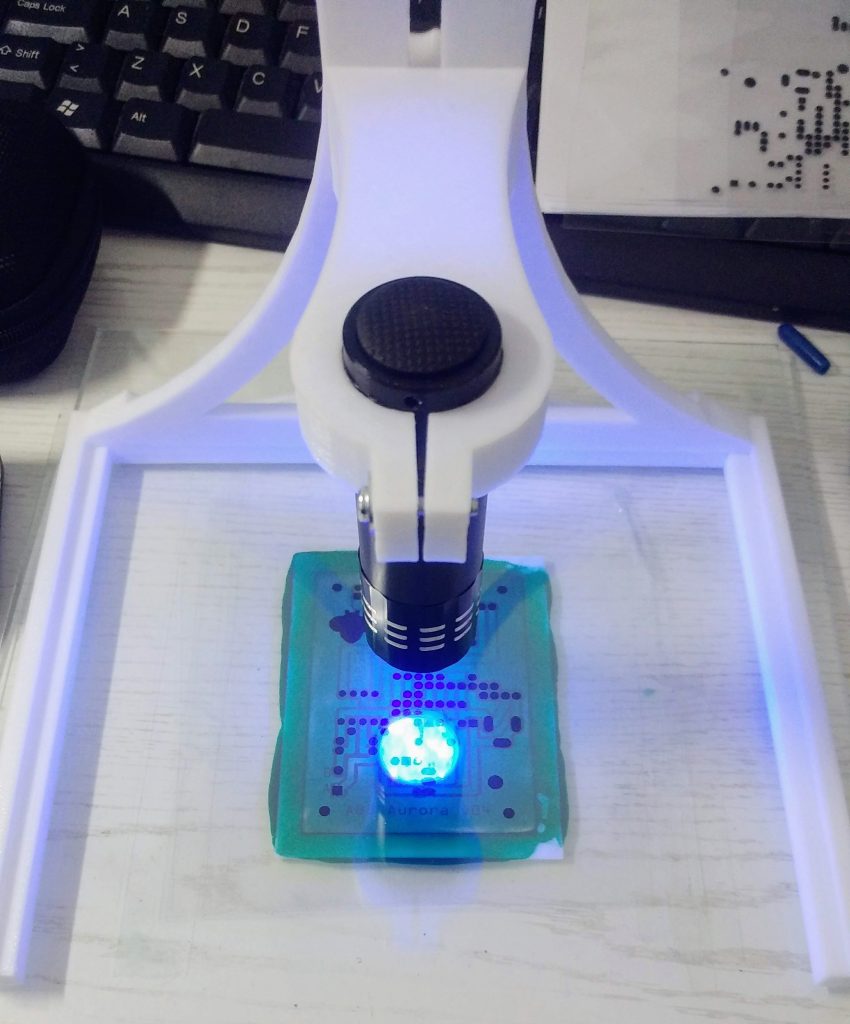

Torch holder at work

I use It to create my first solder mask and It’s doing the job.

Material

  • M6 Nut and Hex Screw (25mm)
  • 4xM3 nut
  • 4xM3 screw (15mm)

Assembling

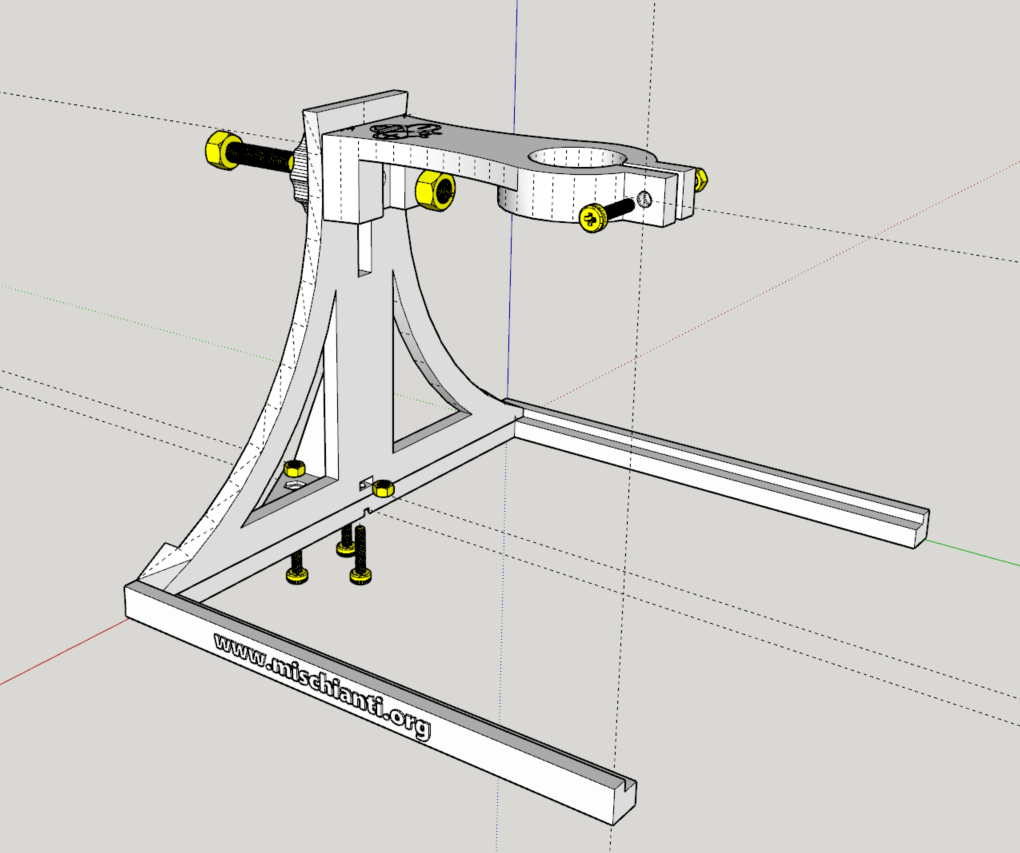

Assembling this holder is very simple, I insert only a picture with the position of the screw and nut.

Download
