When you use a microcontroller, an important feature is storing data, for logging or setting, for a web server, or to show images.

How to use SD Card Adapter esp8266 and Arduino
How to use SD Card Adapter esp8266 and Arduino

The better solution is an SD card because It’s a simple, small, and low-power device.

Protocol

SD card has a native host interface apart from the SPI mode for communicating with master devices. The native interface uses four lines for data transfer, where the microcontroller has an SD card controller module and needs a separate license to use it. Since the SPI is a widely used protocol and it is available in most low-cost microcontrollers, the SPI mode is the widely used interface in low-cost embedded systems. The working voltage range of the SD family is 2.7V to 3.6V, and this is indicated in the operation condition register (OCR). Exist a low-power SD Card that operates al 1.8V but isn’t so used.

Pinout

Exists various form factors, but the base pinout is the same.

MMC SD miniSD microSD pins and size factor
Pin NumberPin NameIn SD ModeIn SPI Mode
1DAT2/XConnector Data line 2No use
2DAT3/CSConnector Data line 3Chip Select
3CMD/DICommand / Response LineData Input
4VDD/VDDPower supply (+3.3V)Power supply (+3.3V)
5CLK/SCLKClockSerial Clock
6VSS/VSSGroundGround
7DAT0/D0Connector Data line 0Data Out
8DAT1/XConnector Data line 1No use

Now we are going to interface SD card for first.

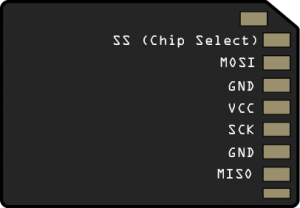

SD pinout

Wiring

The operating voltage forces us to make 2 distinct connection schema based on the type of microcontroller. To interface the SD card, I use an SD adapter with micro SD, which results.

Vista frontale dei pins dell’adattatore SD

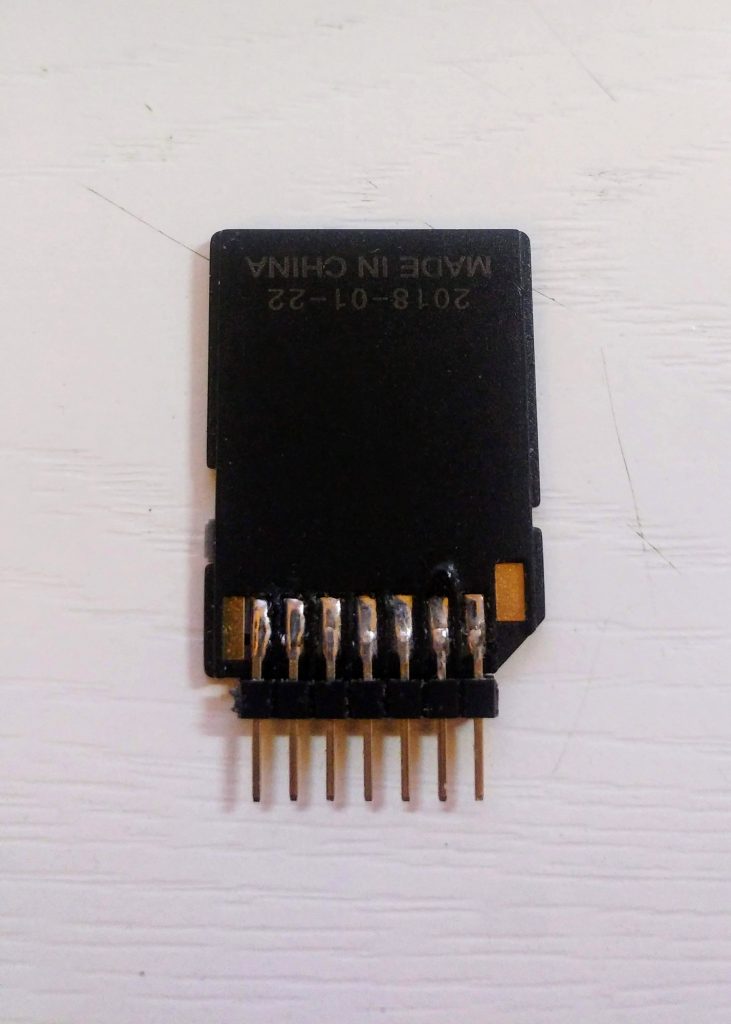

SD adapter pins back

Arduino UNO

As you know, Arduino UNO operates at 5V, so we must add a voltage divider in the input line to prevent the SD Card’s firing.

If you want more information about Voltage Divider you can read this article “Voltage divider: calculator and application“.

I use 2 resistance of 1K and 2K to get 3.3v from 5v, and I pull up the MISO pin to prevent noise.

Arduino wiring SD card adapter

In the schema is more simple to identify voltage dividers and connections.

Arduino SD Card adapter schema

I use standard pins of Arduino examples, so next we are going to use some code that you can find in Arduino IDE also.

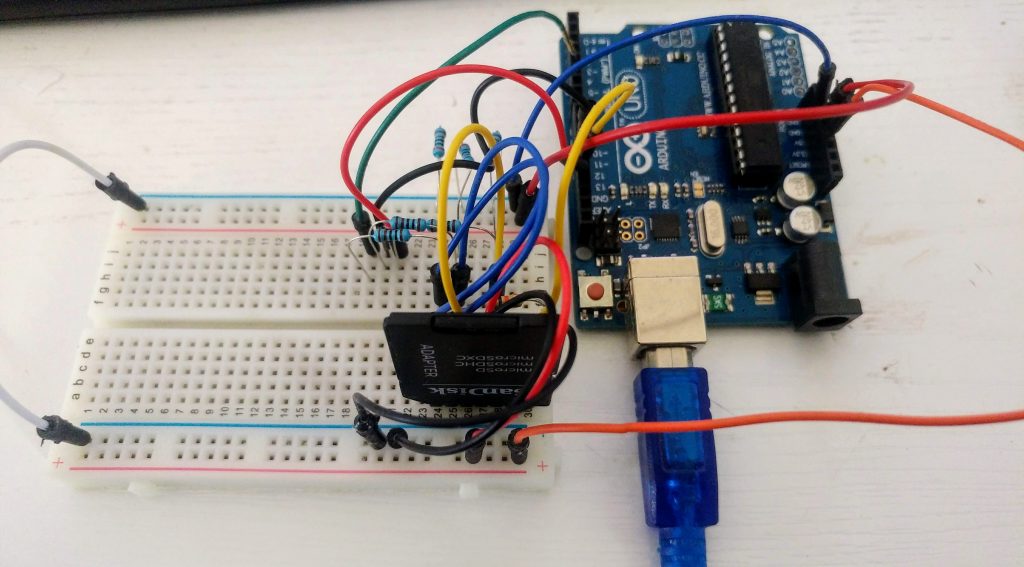

Arduino breadboard SD Card adapter

esp8266

Here the voltage is the same, so all is more simple.

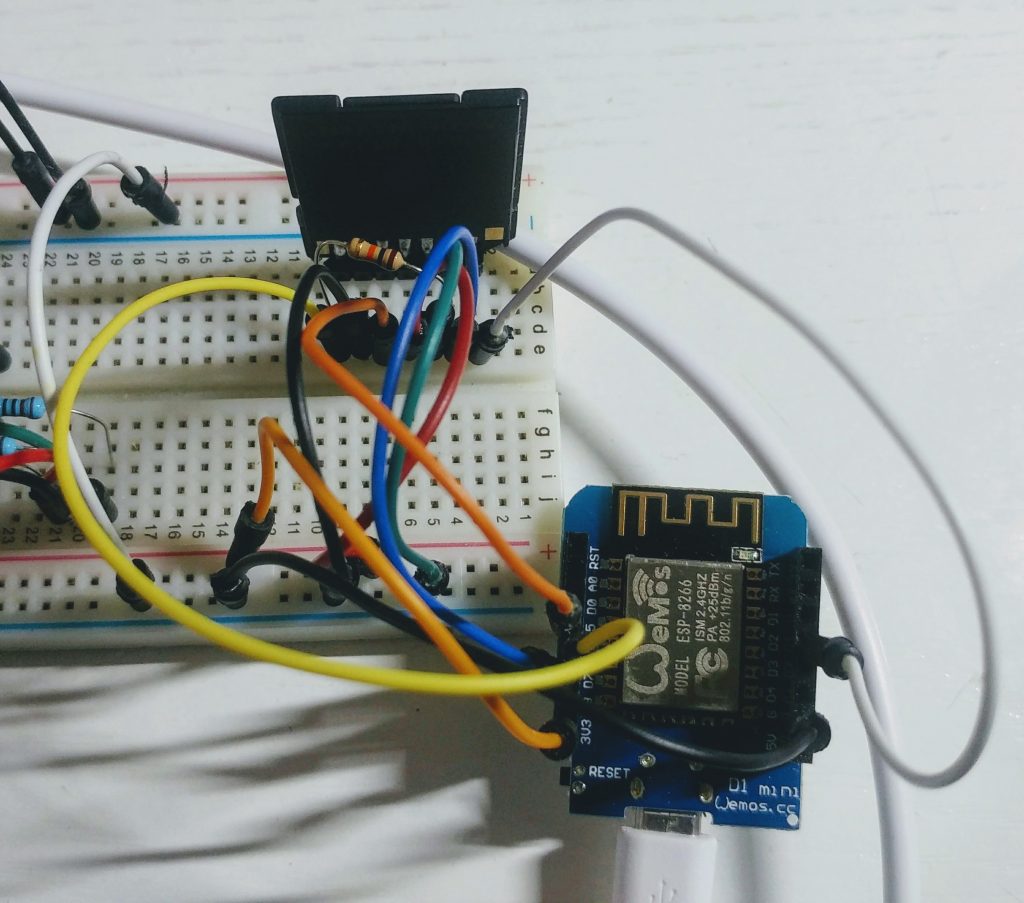

WeMos D1 mini breadboard with SD Card adapter

And the schema

SDCard adapter and WeMos D1 mini schema

We use D2 pin that identify pin 4 as Arduino SD examples.

WeMos D1 mini breadboard SD Card adapter

REMEMBER!! you can use only an 8.3 file, for example, a file like config.txt is accepted but configuration. text no, because the max file length is 8 characters and the extension 3.

But Remember the standard CS pin is D8 like this schema

WeMos D1 (esp8266) SD Card Adapter on breadboard
WeMos D1 (esp8266) SD Card Adapter on breadboard

Modules

There are various modules to interface your microcontroller with your device, and It works exactly like the Arduino connection schema for the 5v adapter and the esp8266 connection schema for 3.3v. When you buy one, you must pay attention to the working voltage.

Exists some variant that supports 3.3v and 5v, like the one linked here.

You can find sd card module on AliExpress

WeMos D1 mini esp8266 SD adapter wiring
WeMos D1 mini esp8266 SD adapter wiring

Commands

SD Class

sd.begin() sd.begin(cspin)
Initializes the SD library and card. This begins the use of the SPI bus and the chip select pin, which defaults to the hardware SS pin. Returns true on success; false on failure.

sd.exists(filename)
Test whether a file or directory exists on the SD card. Returns true if the file or directory exists, false if not.

sd.mkdir(filename)
Create a directory on the SD card. This will also create any intermediate directories that don’t already exist; e.g. SD.mkdir(“a/b/c”) will create a, b, and c. Returns true if the creation of the directory succeeded, false if not.

sd.open(filepath) sd.open(filepath, mode)
Opens a file on the SD card. If the file is opened for writing, it will be created if it doesn’t already exist (but the directory containing it must already exist). Parameter mode (optional): the mode in which to open the file defaults to FILE_READ – byte. one of FILE_READ: open the file for reading, starting at the beginning of the file. FILE_WRITE: open the file for reading and writing, starting at the end of the file. Returns a File object referring to the opened file; if the file can’t be opened, this object will evaluate to false in a boolean context, i.e. you can test the return value with “if (f)”.

sd.remove(filename)
Remove a file from the SD card. Returns true if the removal of the file succeeded, false if not. (if the file didn’t exist, the return value is unspecified)

rs.rmdir(filename)
Remove a directory from the SD card. The directory must be empty. Returns true if the removal of the directory succeeded, false if not. (if the directory didn’t exist, the return value is unspecified)

File class

file.name()
Returns the file name

file.available()
Check if there are any bytes available for reading from the file. Returns the number of bytes.

file.close()
Close the file, and ensure that any data written to it is physically saved to the SD card.

file.flush()
Ensures that any bytes written to the file are physically saved to the SD card. This is done automatically when the file is closed.

file.peek()
Read a byte from the file without advancing to the next one. That is, successive calls to peek() will return the same value, as will the next call to read().

file.position()
Get the current position within the file (i.e. the location to which the next byte will be read from or written to). Returns the position within the file (unsigned long).

file.print(data) file.print(data, base)
Print data to the file, which must have been opened for writing. Prints numbers as a sequence of digits, each an ASCII character (e.g. the number 123 is sent as the three characters ‘1’, ‘2’, ‘3’). Parameter data: the data to print (char, byte, int, long, or string), BASE (optional): the base in which to print numbers: BIN for binary (base 2), DEC for decimal (base 10), OCT for octal (base 8), HEX for hexadecimal (base 16). Returns the number of bytes written, though reading that number is optional.

file.println() file.println(data) file.println(data, base)
As print but with final return

file.seek(pos)
Seek to a new position in the file, which must be between 0 and the size of the file (inclusive). Parameters: pos: the position to which to seek (unsigned long). Returns true for success, false for failure (boolean)

file.size()
Get the size of the file. Returns the size of the file in bytes (unsigned long).

file.read()  file.read(buf, len)
Read from the file. Returns the next byte (or character), or -1 if none is available.

file.write(data) file.write(buf, len)
Write data to the file. Returns the number of bytes written, though reading that number is optional

file.isDirectory()
Directories (or folders) are special kinds of files, this function reports if the current file is a directory or not. Returns true if is directory.

file.openNextFile()
Reports the next file or folder in a directory. Returns the next file or folder in the path.

file.rewindDirectory()
Will bring you back to the first file in the directory, used in conjunction with openNextFile().

Examples for Arduino and esp8266 with core <= 2.4.2

In the Arduino IDE, you can find some examples that are very useful and well commented.

Here is a sketch that extracts all information about the SD card used.

/*
  SD card test

  This example shows how use the utility libraries on which the'
  SD library is based in order to get info about your SD card.
  Very useful for testing a card when you're not sure whether its working or not.

  The circuit:
    SD card attached to SPI bus as follows:
 ** MOSI - pin 11 on Arduino Uno/Duemilanove/Diecimila
 ** MISO - pin 12 on Arduino Uno/Duemilanove/Diecimila
 ** CLK - pin 13 on Arduino Uno/Duemilanove/Diecimila
 ** CS - depends on your SD card shield or module.
        Pin 4 used here for consistency with other Arduino examples

   by Mischianti Renzo <https://mischianti.org>

   https://www.mischianti.org

*/
// include the SD library:
#include <SPI.h>
#include <SD.h>

// set up variables using the SD utility library functions:
Sd2Card card;
SdVolume volume;
SdFile root;

// change this to match your SD shield or module;
// Arduino Ethernet shield: pin 4
// WeMos D1 esp8266: pin 4 (D2) as the first schema or D8 as standard
// Adafruit SD shields and modules: pin 10
// Sparkfun SD shield: pin 8
// MKRZero SD: SDCARD_SS_PIN
const int chipSelect = 4;

void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }


  Serial.print("\nInitializing SD card...");

  // we'll use the initialization code from the utility libraries
  // since we're just testing if the card is working!
  if (!card.init(SPI_HALF_SPEED, chipSelect)) {
    Serial.println("initialization failed. Things to check:");
    Serial.println("* is a card inserted?");
    Serial.println("* is your wiring correct?");
    Serial.println("* did you change the chipSelect pin to match your shield or module?");
    while (1);
  } else {
    Serial.println("Wiring is correct and a card is present.");
  }

  // print the type of card
  Serial.println();
  Serial.print("Card type:         ");
  switch (card.type()) {
    case SD_CARD_TYPE_SD1:
      Serial.println("SD1");
      break;
    case SD_CARD_TYPE_SD2:
      Serial.println("SD2");
      break;
    case SD_CARD_TYPE_SDHC:
      Serial.println("SDHC");
      break;
    default:
      Serial.println("Unknown");
  }

  // Now we will try to open the 'volume'/'partition' - it should be FAT16 or FAT32
  if (!volume.init(card)) {
    Serial.println("Could not find FAT16/FAT32 partition.\nMake sure you've formatted the card");
    while (1);
  }

  Serial.print("Clusters:          ");
  Serial.println(volume.clusterCount());
  Serial.print("Blocks x Cluster:  ");
  Serial.println(volume.blocksPerCluster());

  Serial.print("Total Blocks:      ");
  Serial.println(volume.blocksPerCluster() * volume.clusterCount());
  Serial.println();

  // print the type and size of the first FAT-type volume
  uint32_t volumesize;
  Serial.print("Volume type is:    FAT");
  Serial.println(volume.fatType(), DEC);

  volumesize = volume.blocksPerCluster();    // clusters are collections of blocks
  volumesize *= volume.clusterCount();       // we'll have a lot of clusters
  volumesize /= 2;                           // SD card blocks are always 512 bytes (2 blocks are 1KB)
  Serial.print("Volume size (Kb):  ");
  Serial.println(volumesize);
  Serial.print("Volume size (Mb):  ");
  volumesize /= 1024;
  Serial.println(volumesize);
  Serial.print("Volume size (Gb):  ");
  Serial.println((float)volumesize / 1024.0);

  Serial.println("\nFiles found on the card (name, date and size in bytes): ");
  root.openRoot(volume);

  // list all files in the card with date and size
  root.ls(LS_R | LS_DATE | LS_SIZE);
}

void loop(void) {
}

Here is an example of a read-write of an SD card.

/*
  SD card read/write

  This example shows how to read and write data to and from an SD card file
  The circuit:
   SD card attached to SPI bus as follows:
 ** MOSI - pin 11
 ** MISO - pin 12
 ** CLK - pin 13
 ** CS - pin 4 (for MKRZero SD: SDCARD_SS_PIN) in WeMos D1 esp8266: pin 4 (D2) as the first schema or D8 as standard

  created   Nov 2010
  by David A. Mellis
  modified 9 Apr 2012
  by Tom Igoe

  This example code is in the public domain.

*/

#include <SPI.h>
#include <SD.h>

File myFile;

void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }


  Serial.print("Initializing SD card...");

  if (!SD.begin(4)) {
    Serial.println("initialization failed!");
    while (1);
  }
  Serial.println("initialization done.");

  // open the file. note that only one file can be open at a time,
  // so you have to close this one before opening another.
  myFile = SD.open("test.txt", FILE_WRITE);

  // if the file opened okay, write to it:
  if (myFile) {
    Serial.print("Writing to test.txt...");
    myFile.println("testing 1, 2, 3.");
    // close the file:
    myFile.close();
    Serial.println("done.");
  } else {
    // if the file didn't open, print an error:
    Serial.println("error opening test.txt");
  }

  // re-open the file for reading:
  myFile = SD.open("test.txt");
  if (myFile) {
    Serial.println("test.txt:");

    // read from the file until there's nothing else in it:
    while (myFile.available()) {
      Serial.write(myFile.read());
    }
    // close the file:
    myFile.close();
  } else {
    // if the file didn't open, print an error:
    Serial.println("error opening test.txt");
  }
}

void loop() {
  // nothing happens after setup
}

Examples esp8266 with core > 2.4.2

The latest esp8266 cores have replaced the standard SD library with an implementation that involves the use of SDFat, adding, in fact, support for filenames without limitations, management of save times, etc.

Additional commands via SDFS

SD.begin(uint8_t csPin, SPISettings cfg = SPI_HALF_SPEED) {
SDFS.setConfig(SDFSConfig(csPin, cfg))

You can set more information and parameter that are Inherited from the SDFS class.

SDFS.format()
Formats the file system. Returns true if the formatting was successful.

SDFS.open(path, mode)
Opens a file. path should be an absolute path starting with a slash (e.g. /dir/filename.txt). mode is a string specifying access mode. It can be one of “r”, “w”, “a”, “r+”, “w+”, “a+”. Meaning of these modes is the same as for fopen C function.
Returns File object. To check whether the file was opened successfully, use the boolean operator.

SDFS.exists(path)
Returns true if a file with given path exists, false otherwise.

SDFS.openDir(path)
Opens a directory given its absolute path. Returns a Dir object.

SDFS.remove(path): Deletes the file given its absolute path. Returns true if file was deleted successfully.

SDFS.rename(pathFrom, pathTo)
Renames file from pathFrom to pathTo. Paths must be absolute. Returns true if file was renamed successfully.

SDFS.info(fs_info)
Fills FSInfo structure with information about the file system. Returns true is successful, false otherwise.

file.getCreationTime()
Returns the creation date in epoch time.

file.getLastWrite()
Returns the data of the last write/change in epoch time.

Code

So you are going to add the libraries

  • ESP8266SdFat
  • SD
  • SDFS
  • SPI
/*
  SD card test for esp8266

  This example shows how use the utility libraries

  The circuit:
    SD card attached to SPI bus as follows:
 	 PIN_SPI_SS   (15)
 	 PIN_SPI_MOSI (13)
 	 PIN_SPI_MISO (12)
 	 PIN_SPI_SCK  (14)
*/
// include the SD library:
#include <SPI.h>
#include <SD.h>

// WeMos D1 esp8266: D8 as standard
const int chipSelect = 4;

void printDirectory(File dir, int numTabs);

void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }


  Serial.print("\nInitializing SD card...");

  // we'll use the initialization code from the utility libraries
  // since we're just testing if the card is working!
  if (!SD.begin(SS)) {
    Serial.println("initialization failed. Things to check:");
    Serial.println("* is a card inserted?");
    Serial.println("* is your wiring correct?");
    Serial.println("* did you change the chipSelect pin to match your shield or module?");
    while (1);
  } else {
    Serial.println("Wiring is correct and a card is present.");
  }

  // print the type of card
  Serial.println();
  Serial.print("Card type:         ");
  switch (SD.type()) {
    case 0:
      Serial.println("SD1");
      break;
    case 1:
      Serial.println("SD2");
      break;
    case 2:
      Serial.println("SDHC");
      break;
    default:
      Serial.println("Unknown");
  }

  Serial.print("Cluster size:          ");
  Serial.println(SD.clusterSize());
  Serial.print("Blocks x Cluster:  ");
  Serial.println(SD.blocksPerCluster());
  Serial.print("Blocks size:  ");
  Serial.println(SD.blockSize());

  Serial.print("Total Blocks:      ");
  Serial.println(SD.totalBlocks());
  Serial.println();

  Serial.print("Total Cluster:      ");
  Serial.println(SD.totalClusters());
  Serial.println();

  // print the type and size of the first FAT-type volume
  uint32_t volumesize;
  Serial.print("Volume type is:    FAT");
  Serial.println(SD.fatType(), DEC);

  volumesize = SD.totalClusters();
  volumesize *= SD.clusterSize();
  volumesize /= 1000;
  Serial.print("Volume size (Kb):  ");
  Serial.println(volumesize);
  Serial.print("Volume size (Mb):  ");
  volumesize /= 1024;
  Serial.println(volumesize);
  Serial.print("Volume size (Gb):  ");
  Serial.println((float)volumesize / 1024.0);

  Serial.print("Card size:  ");
  Serial.println((float)SD.size()/1000);

  FSInfo fs_info;
  SDFS.info(fs_info);

  Serial.print("Total bytes: ");
  Serial.println(fs_info.totalBytes);

  Serial.print("Used bytes: ");
  Serial.println(fs_info.usedBytes);

  File dir =  SD.open("/");
  printDirectory(dir, 0);

}

void loop(void) {
}

void printDirectory(File dir, int numTabs) {
  while (true) {

    File entry =  dir.openNextFile();
    if (! entry) {
      // no more files
      break;
    }
    for (uint8_t i = 0; i < numTabs; i++) {
      Serial.print('\t');
    }
    Serial.print(entry.name());
    if (entry.isDirectory()) {
      Serial.println("/");
      printDirectory(entry, numTabs + 1);
    } else {
      // files have sizes, directories do not
      Serial.print("\t\t");
      Serial.print(entry.size(), DEC);
      time_t cr = entry.getCreationTime();
      time_t lw = entry.getLastWrite();
      struct tm * tmstruct = localtime(&cr);
      Serial.printf("\tCREATION: %d-%02d-%02d %02d:%02d:%02d", (tmstruct->tm_year) + 1900, (tmstruct->tm_mon) + 1, tmstruct->tm_mday, tmstruct->tm_hour, tmstruct->tm_min, tmstruct->tm_sec);
      tmstruct = localtime(&lw);
      Serial.printf("\tLAST WRITE: %d-%02d-%02d %02d:%02d:%02d\n", (tmstruct->tm_year) + 1900, (tmstruct->tm_mon) + 1, tmstruct->tm_mday, tmstruct->tm_hour, tmstruct->tm_min, tmstruct->tm_sec);
    }
    entry.close();
  }
}

And the result will be

Initializing SD card...Wiring is correct and a card is present.

Card type:         SDHC
Cluster size:          32768
Blocks x Cluster:  64
Blocks size:  512
Total Blocks:      940

Total Cluster:      60184

Volume type is:    FAT16
Volume size (Kb):  1972109
Volume size (Mb):  1925
Volume size (Gb):  1.88
Card size:  1972109.25
Total bytes: 1972109312
Used bytes: 1376256
System Volume Information/
SPLAS.H		49354	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
desktop.ini		130	CREATION: 2021-03-23 14:40:24	LAST WRITE: 2021-01-29 12:02:42
PROVA/
	SOTTO/
		1109.PDF		148872	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	WPSETT~1.DAT		12	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	PAGe.PHP		122	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	LOGO.JPG		0	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	barbie_singer_step_11.png		55829	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
PROVA2/
	404.PHP		121	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	LOGO.JPG		0	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	bomb.png		44236	CREATION: 2021-03-23 14:40:14	LAST WRITE: 2019-01-02 16:34:28
	SPLASk.H		24677	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	TESTe.TXT		32	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
	logoBN1264.bmp		9338	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
1109.pdf		148872	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
barbie_singer_step_11.png		55829	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00
ciao/
	logoEncod.txt		6500	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
	logo.jpg		46136	CREATION: 2021-03-23 14:40:18	LAST WRITE: 2019-10-23 13:15:28
	logoSchermo.xcf		6473	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
	nome.svg		8546	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
	nome_vector_text.svg		20513	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
	logoBN128x64.png		2213	CREATION: 2021-01-01 00:00:00	LAST WRITE: 2021-01-01 00:00:00
LOGOs.JPG		71112	CREATION: 2000-01-01 01:00:00	LAST WRITE: 2000-01-01 01:00:00

The second sketch also works on this version of the core.

Thanks

  1. How to use SD card with esp8266 and Arduino
  2. How to use SD card with esp32
  3. How to use SD card with stm32 and SdFat library

Spread the love

8 Responses

  1. hi. Does two board(Arduino and esp)have access to sd card at the same time?

    • Hi,
      At the same time no, but in theory you can use cs pin to check if someone access the sd at the moment and wait to have access.
      But every time you must disconnect and reconnect the sd.
      If you try the experiment let us know the result.
      Bye Renzo

  2. Tom says:

    Hello Renzo, good tutorial and great job!
    please find my correction note for your schematic “SDCard adapter and WeMos D1 miniature circuit diagram”. The picture of the SD card is wrong (mirror-inverted), the pull-up resistor should go to the MISO pin (instead of the SS), as you already mentioned.

    additional notes on my design:
    – usage of ‘WeMos D1 mini’ only, therfore add the pull-up resistor and the GND bridge directly to the SD card adapter
    – Connection ‘SDcard’ according to your tutorial
    – Use of the standard Arduino libraries ‘SPI.h’ and ‘SD.h’
    – tested with code example “ReadWrite” from the standard Arduino SD libraries:
    https://github.com/esp8266/Arduino/tree/master/libraries/SD/examples with adaptation of the ‘chip select’ pin to the standard pin 8 in case of NodeMCU and D8 in my case of ‘WeMos D1’
    best regards
    Tom

    Translated with http://www.DeepL.com/Translator (free version)

  3. Vitalie says:

    could not convert ‘4000000ul’ from ‘long unsigned int’ to ‘SPISettings’

  4. Pasi says:

    esp8266 example gives errors:
    -“Compilation error: variable or field ‘printDirectory’ declared void”
    -“Multiple libraries were found for “SdFat.h”, when using #include

Leave a Reply

Your email address will not be published. Required fields are marked *
